Boat Design and Development Frances
Sweisguth - designer and developer of the Star FRANCIS
SWEISGUTH (1882-1970)

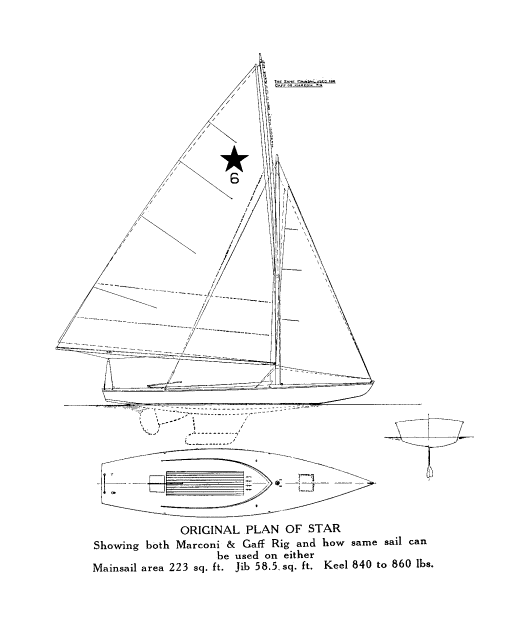

Here we will look at the man who not only drew the plans for the original Stars, but also supervised the two changes in the rig and sail plan, first in the early 1920’s when the rig was changed from the gaff rig to the short Marconi, and then at the end of the decade when the rig was changed from the short Marconi rig to the modern rig the Star still uses today. Few of us realize how much the Star Class is indebted to Francis Sweisguth. Much has been written about the origins of the Star boat and the Star Class, for example in the past anniversary Star Class Logs (1922, 1931, 1941, 1951, etc.) and Starlights (January, 1986). For a detailed history which covers all of this material see C. Stanley Ogilvy’s book, History of the Star Class, available from the Central Office. Here we will focus in on the important role of Francis Sweisguth, the draftsman in William Gardner’s Naval Architect office who drew up the plans of the Star boat. In about 1906 George A. Corry, the ring-leader of a small group of yachtsmen from the New York City area, asked William Gardner to design a small, inexpensive chine-built arc-bottomed sail boat with a keel. George Corry was a friend of William Gardner, and it was natural for Corry to contacted him to design the boat. The first fruit of Gardner's effort for Corry's group was a boat known as the Bug. The Bug was drafted by Curtis D. Mabry of Gardner's office and made its appearance on Long Island Sound in 1907. The boat is reported to have been 17’ long with a keel weighing 150 lbs.
After four years of racing the Bugs in the waters about New York City the owners of the Bugs decided that the boats were too small, too wet and much too uncomfortable. A committee was appointed, consisting of George Corry, A. B. Fry, Thornton Smith and William Newman, to take this matter up with William Gardner. That was done in the early fall of 1910. This time it was Francis Sweisguth who was Gardner's draftsman who drew up the plans for the boat. It is interesting to note that apparently by the time the boat was ready to be built it still did not have a name. In fact when copies of the plans for this new boat were sold to the Nahant Dory Club in Massachusetts for construction of a class boat for that club the name of the resulting boat was the Nahant Bug. Despite this name, these Nahant boats for some unexplained reason had red Stars on their sails. In any case, in the beginning George Corry wanted to name the new Long Island Sound class the Big Bug. Fortunately for the Star Class, Stuyvesant Wainwright of the American Yacht Club suggested the name Star as being more appropriate for the new Long Island Sound class. During the winter of 1910-1911 twenty-two Star boats were built by Ike Smith of Port Washington for the Long Island Sound group. It is interesting to learn from the 1922 Star Class Log, the first Log put out by the Star Class Yacht Racing Association which had just been formed that same year, that Francis Sweisguth was one of the original owners of the Star Class yachts built by Smith. According to the Log, Mr. Sweisguth owned Star # 6 from 1911 to 1915. The Star, as originally drawn up by Mr. Sweisguth, was a gaff rigged boat with a long boom, very typical for racing boats of the day. The luff of the mainsail was 24"11" as opposed to 30’6" now used on the modern rig and the foot of the mainsail was 18’4" as opposed to 14’7". As the Star Class continued to grow and develop during the late 1910’s and early 1920’s it became clear that the rig should be modernized. The first step was to change to rig from a gaff rig to a Marconi rig. This changeover occurred gradually during the early 1920’s. The same mainsail could be used on either rig. The 1922 Log shows the Star sail plan with both the gaff rig and the Marconi rig. The caption to the plan states that the same sail can be used on both rigs. It is interesting to note that the number on the mainsail of the boat in the sail plan is # 6. While this is just a conjecture, it seems most probable that Mr. Sweisguth was responsible for drawing this sail plan.
In the April, 1929, issue of Starlights, in an article entitled "Modernizing Star Rig under consideration", there is the following comment: "Though the idea of adopting a more modern rig for the Star Class is not a new one, Larry Bainbridge, D.S., is responsible for placing it before the I.E.C. in such a convincing light that it has been unanimously voted to give the project wide publicity and then place it before the next annual meeting at New Orleans… Our present rig with its long boom is out of date, it does not appeal to the new man who is coming into the game and it will not retain the interest of the keen skipper who may be driven out of the Star Class and into classes that offer the modern improvements in sail design…." The Starlights of November, 1929, continued the story in the article "Modern Rig Adopted for 1930": "A modern rig was adopted at the annual meeting in New Orleans by a vote of 434 to 66, to become effective March 1st, 1930…. The rig recommended by the Bainbridge Committee, which gives a boom to the transom and about the same sail area as the present rig, was adopted in principle and referred back to a Technical Committee, to be appointed by the President for any necessary refinements. This Technical Committee consists of Prescott Wilson, head of Geo. Burrows, Inc., sailmakers, Ernest Ratsey, of Ratsey & Lapthorn, Inc., sailmakers, and Francis Sweisguth, who drew the original plans and was formerly with Wm. Gardner."
In 1961, as the part of the 50th anniversary of the birth of the Star boat, Mr. Sweisguth was made an honorary Life Member of the Star Class. C. Stanley Ogilvy, Star Class editor and historian at the time, visited Mr. Sweisguth in his Larchmont home, in part to get Mr. Sweisguth’s version of the history of the Star Class. Part of this interview was reported in Starlights of May, 1961. Then, in August, 1970, Starlights carried the obituary of Francis Sweisguth which read in part as follows:
Francis Sweisguth, who drew the original lines of the Star in 1911 in the office of William Gardner, died recently at his home in Larchmont, N.Y. at the age of 87. Mr. Sweisguth was the last of the "charter owners", who sailed one of the first boats in 1911. In a very real sense he was the designer of the Star hull. The smaller Bug had been designed in the same office. Mr. Sweisguth said, in an interview a few years ago, "The Bug lines were not drawn by me. When Billy Gardner asked me to do the Star, I started from scratch, without looking at the Bug lines. If the two boats looked alike, it was because the lines of all chine-built boats with an arc bottom are similar." Further search through the Star Class archives at Mystic Seaport Museum may reveal more about Mr. Sweisguth’s involvement with the development of the Star boat. However, if the above information is accurate, then Mr. Sweisguth not only designed the Star, but was the technical advisor for the Star Class during time the two rig changes took place. During these 20 years the Star boat went from having a gaff rig to the short Marconi and finally to the rig we still use today, and Mr. Sweisguth was at hand for each of these phases of development. When Mr. Sweisguth died in 1970 the Star Class was in the middle of a technological revolution. Fiberglass boats had just become approved and aluminum spars were being discussed by the Technical Committee. Throughout the next 30 years innovation and refinement have been the guiding principles of the Star Class. One has to wonder what would Mr. Sweisguth make of his boat today, now 90 years young?
SKIP ETCHELLS Skip Etchells played an important part in birth of the modern Star. In college he studied naval architecture and when World War II began he went to work in Seattle in the shipbuilding industry. Because of his naval architect training Skip realized that there were allowable tolerances in the Star specifications which would allow him to build a superior boat. This knowledge was further reinforced by the work which Phil Spaulding and Harry Hofmann did in the 1930’s for their master’s thesis at University of Michigan in which they studied the effects on the Star hull design by taking the boat to its maximum and minimum tolerances at given stations. They built three models to tank test the question of what the effects on hull speed would be by so doing. Phil, who had set up a naval architect business in Seattle, became acquainted with Skip during the early war years and passed onto him the lines from the most efficient hull in their experiment. As Phil Spaulding noted in a recent interview, this hull was mark by a wider bow and a flatter contour than was normally built into the Stars of the time. In 1942 Skip and his friend Bill Kelley built the first Etchells Stars, # 2125, Shillalah and # 2127, Hell's Angel, in which he applied these principles. They began construction on these boats first on Mercer Island in Seattle and later finished them off in the Madison Park garage where the Puget Sound Star Fleet housed their boats during the winter. It is perhaps appropriate here to take a look at the question of tolerances which were allowed in the building of a Star in the wooden hull era. The specifications as they came from Gardner's office in 1911 gave exact numbers. For example, the over-all length was given as 22' 7" and the beam as 5' 8". It was expected that there would be builder errors and in the beginning this was not an area of concern. However, in the 1925 Log there appeared for the first time an attempt to limit what constitutes builder's errors. It is quite apparent that there was considerable sloppiness on the part of builders up until January 1923, when, according to the 1925 Log, these new limitations on dimensions were drawn up. For example, the length over-all in the revised specifications was given as: "22 feet, 7½ inches. A variation of one inch over, or four inches under, allowed in all boats built prior to January, 1923, and 1 inch under or 1 inch over allowed in all boats built after January, 1923." Four inches under on pre-1923 Stars??? There must have been some pretty short Stars sailing around in those days! In the 1930 Log a Table of Limitations governing variations in hull construction first appeared. These limitations were not altered for many years. In the 1941 Log the following are the limitations which Skip Etchells had to work with when planning the construction of his boat.
What is most noticeable in these limitations is that the bottom contour of a boat can be 1" over or 1" under at any station. Obviously this gives 2" overall if one uses a moveable base line, making it possible to flatten out a boat by dropping the ends 2". Based on the information which Phil Spaulding passed onto him, the concepts which Skip used in building his boats were to make the bow as wide as possible under the rules, thus making the boat full in the ends, while at the same time flattening out the boat fore and aft. It is worth mentioning that aside from making the boats constructed using this technique faster, especially off the wind, having full ends also made the boats much more stable. Bill Buchan remembers that at the 1954 North American's sailed in Rockport, MA, the competitors rafted their boats each evening because there was no haulout of boats. One day it happened that his boat was rafted outside #2125, sailed in that series by its new owners Daniel and Brian Catlin of the Great South Bay fleet. Bill had to hop from boat to boat to get to the dock, and when he landed on #2125 he knew there was something very different about the boat. It felt more like a battleship because it was so steady. Of course it didn't take long for builders, professional and amateur alike, to realize that they were being left behind by Skip's innovative boats and to begin to try to imitate the boats which Skip was building. Bill, for example, built his own boats, starting with #2830 in 1949. Although he tried to incorporate Etchells' concepts in his boat, still even with his third boat # 3328, the first Frolic, he hadn't incorporated the wide bow at station 1 which the O.G. boats had. When he realized that he missed this point he did major surgery to Frolic in 1956 to correct the situation. When the war was over Skip married Mary O'Toole and move to Greenwich, CT. He took a job in New York City with the naval architect firm of Sparkman & Stephens. According to Jane Lawrence, Skip was not happy doing the daily commute into the city, so after two years of working at S&S he established the Old Greenwich Boat Company. To get him started John Hazen White invited Skip to use a small shed and carpentry tools on the White estate. White also owned Rocky Point Sailing Club and wanted Skip to build a fleet of Moths for the club. This got Skip started with a nice order. Later came an order from White for Lightnings. By 1948 word got around that Skip would build you one of those super Stars and orders started coming in. By 1956 O.G. Boat Co. had outgrown the White facilities and the operation was moved to Stamford, CT. Skip was forever tinkering with the design of his Stars. O.G. Stars were designated by model letters. By the late 1950's the model designation was "D", or if chromed hardware and bleached deck were part of the deal, "Super D". The last boats to be built by O.G. in 1970 were designated as "G". In that year the rights to the hull design were transferred to Duplin Marine in Winthrop, MA, and Joe Duplin began to build fiberglass O.G.'s using an O.G. model "G" hull as the plug for his mold. About model differences Bill Buchan has the following observation: "Joe Duplin once told me that Skip was really surprised that my boats, which were much wider than his at stations 2 and 3 on the chine and narrower than his at the deck at those same stations, were successful. He experimented with moving the volume of the boats nearer to the ends by deepening the keel profile at stations 2, 3 and 4 as well as 7, 8 and 9. There were some boats built with what I would call a "pumpkin" shape as compared with the more successful "V shape". I would think that he felt that the rounder athwartship section would be better in light winds as it should reflect lower wetted surface. Whether it worked out that way or not I can't say. I will say, though, that a model that was called the "F", one of which was sailed by Joe Burbeck in the summer of 1962 on Long Island Sound and later in the World's of that year in Cascias, was about the fasted shape that I ever saw Skip turn out." One of the hallmarks of the O.G.'s was the quality of workmanship which went into the boats. Top-grade red cedar was used throughout most of the boat. In the areas which took the most stress however, namely the keel plank, keelson, and the ribs which held the keel mahogany was used. Also unique at the time were the decks of O.G.'s. Unlike the other builders who used wide red cedar planks, usually 6" to 8" wide, the O.G. decks were constructed out of 1 5/8" wide red cedar planks which were shiplapped. On the topside of the plank there was an 1/8" gap between planks which was filled with Thiokol (black rubber). As a nice touch the center deck king plank was mahogany and mahogany was also used around the cockpit edge. The deck was bleached before the varnish was applied, giving the deck a straw-yellow color. All these extra details made the O.G.'s somewhat heavier than the Lippincotts and Eichenlaubs, but a quick glance through the recent Star Class Logs shows that there are more O.G.'s still in service from the wooden boat era than there are Lippincotts or Eichenlaubs. As a recognition of the quality of the O.G.'s the Old Greenwich Boat Company's ad in the Logs would often carry the by-line "Built like a yacht", this as opposed to the Eichenlaub by-line which read "Fine light spars and hulls". The extra weight which an O.G. carried, which was really was only about 50 lbs., did not seem to make the boats any less competitive, and O.G.'s still won their share of races. One of the lightest Stars ever built was Tom Blackaller's Eichenlaub # 3938, which is reported to have weighed 1,340 lbs. In the October, 1965, Starlights the weight of each boat which competed in the 1965 World's is given. The winning boat was an O.G., # 4831, which weighed 1,423 lbs. Next was an Eichenlaub, # 4749, which weighed a surprisingly heavy 1,457 lbs. Third was a Buchan, # 4913, which weighed 1,383 lbs. One of the big controversies during the 1960's was the question of V-bottomed boats. The Table of Limitations included the words, "Section of bottom to be true arc of circle." The Eichenlaubs got to the point where the V-bottom was carried right to the stern making it obvious that the thwart-ship bottom frames were not true arcs. The O.G.'s were much more subtle in this respect. The frames themselves were relatively true arcs, but the keel flange was faired by building up extra thickness fore and aft and on either side of the keel. The resulting effect was something approximating a V-bottom, at least in the area around the keel. At the height of the controversy about the bottoms of many Stars not being a true arc Skip Etchells proposed a toast at a Star dinner "To Noah, the builder of the only true Ark."
Here We Go Again, by
E.W. Etchells Just had an excellent idea for a few of our brethren who can't stand halyard locks: get a screwdriver and take 'em off! Then please let the rest of us use ours in peace. We've had them for years and they work fine. That's all - except for the taker-offers who like a limber mast and have them pared down just about so. In these cases have a spare ready - a little fatter than before. And if we are all forced to remove our halyard locks, how about letting the proposers of this legislation guarantee to replace, at their expense, all the broken spars which result? Because there will be lots and lots of them. Most everybody had heard that halyard locks reduce the column load due to halyards by one half. But unless the latch taker-offers want to run the downhaul end through an illegal hollow mast or a series of fairleads, they will have another problem, namely, eccentricity increase as the mast bends and makes like an archer's bow. The wire seeking the shorter straight line is not relieved as the sheave gets closer to the deck. The headboard drops and automatically maintains the bowstring tension. Mast failure due to this difficulty is fun to watch - from another boat. It creeps up slowly at first, then faster, and ends with a bang. At least, so it was before halyard locks. Skip Etchells by
Skip Allan Over the years, I had two Etchells Stars. Number 3497 was an Etchells "C" model, and # 4497 was an "E." Number 3497 literally landed at my feet transom first. Its previous owner and crew were short-tacking up the Newport Beach shoreline and a big wave carried it ashore stern first while I was standing there spectating from the beach. The transom was crushed, but our family bought the boat for salvage and Gerry Driscoll did a beautiful repair job. By 1962 Mary Etchells had retired from crewing for Skip. He needed a crew and called me up. I was 16 at the time and weighed 125 pounds, 100 pounds less than Skip. I flew to Portugal and crewed in the 1962 World's in Cascais with Skip. We did well in the big breeze, despite my light weight, and came third in the World’s. Dick Stearns and Lynn Williams won the Gold Star that year with their Etchells "D" model, and the Russian team came second in another Etchells boat. The Russians had Skip Etchells incensed, as they were clearly using hiking aids, illegal at the time. Skip protested, and we had witnesses. But Class President Paul Smart disallowed the protest, partly to avoid an international "incident." I came away from the World's with a healthy respect for Skip Etchell's attention to detail, as every night he would tweak on his sails. He was also a good tactician, as was evidenced by the Gold Star on his sail. Skip Etchells' starting techniques were rather unique. All Etchells Stars, beautiful in their own right, came with a mahogany drawer aft under the tiller. I finally got to see what this drawer was intended for when crewing for Skip at Cascais. He carried his stopwatch in that drawer, and as we approached the starting line, he would continually open and shut the drawer to check the time left on the stopwatch! Old Greenwich Stars, built by Skip Etchells, were the most beautiful wooden Stars ever built. I sincerely hope someone has kept at least one of them.
THEY DON’T TACK LIKE THAT ANYMORE While reviewing Star Class films for Mystic Seaport, in part so Mystic will know what is on these films and in part to find clips which would make for interesting viewing for a film loop which they plan to make for the Star Class exhibit, there are various examples of people tacking using this method. For example, in the video of the 1961 World’s Championship during the last race there is a view where as Bill Buchan tacked he scooted over the tiller rather than going under it. Going further back, in the film of the 1950 World's held in Chicago shows that Skip Etchells also scooted over the tiller while tacking. Apparently the same was true for Lowell North in the 1949 World's film, although that was not as clear. Bill confirmed that indeed many skippers did scoot over the tiller while tacking in those days, but of course that came to an end when the booms began to be carried lower to the deck because it got to the point where there was no room to squeeze through the slot between the boom and the tiller. Skip Allan made the following comment about tacking using this method: "Most of the good sailors in those days went over the tiller, although personally I went under. I definitely remember Skip Etchells going over the tiller, and I remember Don Edler and Bill Ficker doing the same. We didn't carry as much rake in those days. I was average, and the outhaul end of my boom was about a foot off the deck when close-hauled. I think it was the SF Bay sailors who first discovered rake was fast in a breeze. In fact, I remember seeing Punky Mitchell’s rake for the first time, and said "whoa!" Too much rake was slow in Southern California in those days, but I think with the bigger sails of modern rigs, the more rake you can get the better (as long as you can still sheet the main.) I also remember a Star World’s Champion, who shall remain nameless, who occasionally got stuck between the tiller and the boom, but whose crew was trained to pull the stuck skipper to the high side when he heard the "grunt#**#!!" coming from the back end. The reason going over the tiller was that it was faster and more direct than dipping into the cockpit and climbing out the other side." PHIL SPAULDING and the flat Stars BUCHAN BOATS
- from a conversation with Bill Buchan It happened at this time near Bill's house in the Seattle neighborhood of Madison Park that there was a garage full of Stars, some 20 in all. It was the winter storage place for the Puget Sound Star Fleet. While he and his father got the plans to build a Star from the Class, they found it easier to go to the garage and measure the Stars that were there as well as to pick up on ideas for the construction of the boat. Somehow, the resulting boat was able to measure in as a legal Star. The boat was named "Torrid", # 2830, which was completed and registered in 1949. The Buchans, father as crew and son, now 14, as skipper, started to race with the Puget Sound Fleet. The fleet was fairly active, with 20 or more boats turning out for the important races such as the Fleet Championship or what was then called the Pacific International Yachting Association Regatta where the Puget Sound Fleet would mix it up with the Canadians from the Vancouver area. After a couple of years of sailing "Torrid", Bill became more acquainted with the finer points of boat construction in terms of taking advantage of the various tolerances which were allowed in hull construction and design. The Class was abuzz with what Skip Etchells was doing with his O.G.'s (from Old Greenwich Boat Co.). As a point of interest, Skip and his friend Bill Kelley actually built the first Etchells Star in the same Madison Park garage while they were employed in the Seattle shipbuilding industry during the war. Bill and his father then set about building a new boat which took advantage of some of these "builders tolerances". The resulting boat was "Bydand". # 3213, built and registered in 1952. Bill went to Newport Harbor for the Christmas Regatta that winter to crew with another Seattle Star sailor where he saw George Fleitz, who was amazingly fast in his O.G. Wench IV, Star # 2951. Fleitz had synthetic sails made by Kenny Watts which Bill had no idea even existed. Bill wanted to order a suit of these sails, but Watts didn't want to sell sails to someone who might make his sails look bad. That summer, John Cram and his brother Wally showed up in Seattle with O.G. # 3298, "Scram", and showed awesome speed in their O.G. as well, interestingly enough with cotton sails, also made by Watts. It was obvious to Bill that it was the O.G. boat and not necessarily the synthetic sails that were responsible for generating such performance. After looking at Cram’s boat Bill came to realize that there was more wiggle room in the hull tolerances than he thought possible. This was accomplished by utilizing what the Class called the "moving baseline". By doing so, a boat could be flatter by 2" from the original plans instead of the 1" that he thought was the maximum and still measure in. That was enough to prompt Bill to build yet another boat, #3382, the first "Frolic", in that same summer of 1953. One of the other hallmarks of the O.G.'s, which wasn’t discovered until a couple of years later, was the wide bow. Skip had opened up the half beam measurement at station 1, a measurement that at that time wasn’t recorded on the certificate, making the stem more plumb which had the effect of increasing the sailing length of the Star. Realizing that, Bill performed major surgery on the "Frolic" the winter of 1956. With the building of "Frolic" Bill became a builder of record in the Star Class Log, and Buchan Boats under the symbol BUC was listed in the 1954 Log. Unfortunately, "Frolic" did not receive her measurement certificate by the time the North American Silver Star series of 1953 took place, and he and his father had to take "Bydand" to Milwaukee. They finished in the lower third of the fleet.

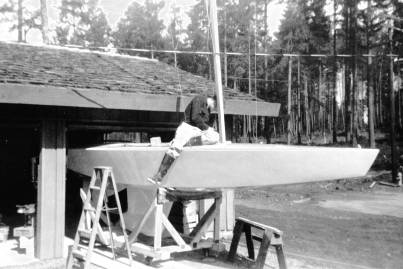

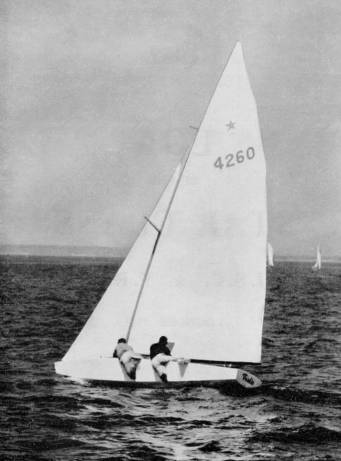

Since Bill couldn't get Watts to sell him sails he had a local sailmaker build him a suit from Dacron in 1954. He and his father participated in the 1954 N.A.'s, this time held at Rockport, MA. With the new boat and sails they were now whistling another tune and finished 15th out of 37. About this time Murphy and Nye began to make synthetic sails out of a fabric called Orlon, which were very successful so Bill began to buy sails from them in 1955. After a few years of sailing the "Frolic" #3382 successfully in the 6th District and oing somewhat better at the 1958 and 1959 World's (9th and 10th) Bill decided to build a new "Frolic", #4260, during the winter of 1959/1960 in the garage of his new home on Mercer Island. With this "Frolic" Bill won the 1961 World's with Doug Knight crewing. The next year they went to the World’s at Cascais where they finished 4th. (Star #4260 stayed in Portugal and is presently being refinished by its owner Mario Guedes de Sampaio.)

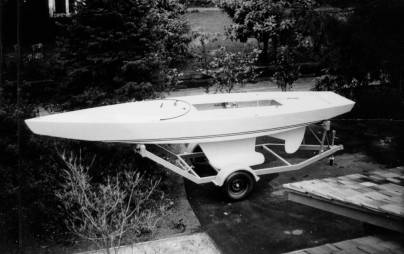

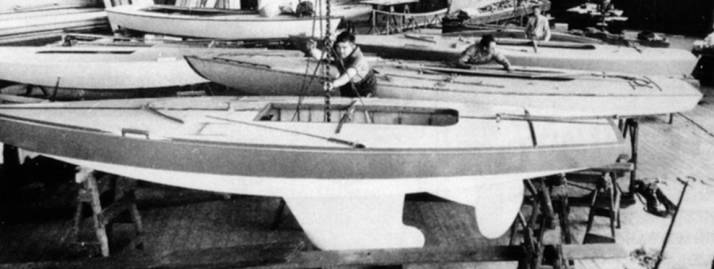

In 1963 Bill built Star #4660, also named "Frolic". The main characteristic of #4660 was that it was narrow at the chine and wide at the sheer with minimum freeboard, as compared to 4260, which was a very narrow shape. Bill felt that this design might have better speed in strong wind conditions. With this boat Bill was 5th at the 1963 World's at Chicago. This was also the boat that he sailed at the 1964 Olympic Trials, held in Chicago too. Although the boat certainly performed well in the breezy races, Chicago, as we now know, isn’t really the "Windy City" that Bill thought it was. Not being satisfied with that boat, he then built Star #4913 in the fall of 1964 and finished 3rd at the 1965 World's at Newport Harbor. This was followed by Star #5260, built in 1968, which was raced in the 1968 Olympic Trials in San Diego. In 1968, because of a housing slowdown in the Seattle area, Bill's construction business tapered off. That, and the advent of fiberglass made it apparent that Bill might want to build Stars for a living. Fiberglass boats had become allowed by the Class by this time. A plug was built in Bill’s shop based on the lines of 4260, which seemed to him as the most well- rounded of all the boats he had built in the interim. The work of building the molds as well as the hulls themselves was done by the Clark Boat Co. in Kent, Washington. Bill brought the unfinished hulls back to his garage/workshop and finished them off there, working mostly on nights and weekends.
Bill won the World's at Marstrand with #5460 which was built utilizing the new lay up. One of the early problems, which Bill encountered with the fiberglass boats was that there was a surprising amount of shrinkage. The molds had to exceed maximum length by a slight amount, for example, in order for the boats to measure in properly. New molds were built in 1971 for the 5600 series boats, many of which were delivered to their owners at the Seattle World’s Championship that summer. In 1973 Bill built a second boat for Lowell North, Star #5662. This boat won the 1973 World's for Lowell and then won the 1974 World's with Tom Blackaller at the helm.
The 5600 series molds were sent to Ron Anderson and Larry Whipple after the 1974 World’s so that the boats could be built someplace else since Bill’s construction business was now taking all of his spare time. Sometime later the molds were brought back to Seattle and were eventually sold to a group of people in Brazil. With his son Carl’s good friend Chris Mass doing most of the work, Bill then built a split mold in the hope that the boats would be easier to assemble, by someone other than himself hopefully. One interesting phenomenon is that boats built in a split mold cure to be a flatter shape athwartships and boats built in a one piece mold wind up being of a rounder shape. The flatter boats out of this mold were not especially good in light air whereas the rounder ones, for example those molded by Miller, out of a still later mold proved to be good light air boats. At about this time both Howard Lippincott and Bill Gerard asked Bill if they could use 5600 series boats, which they had at their disposal, to build molds for their own use. In both cases Bill said it would be fine and as a result, several boats were built by both of their companies over the next several years, one of them being the boats with which Buddy Melges won the 1978 and 1979 World’s. Mader was also interested in utilizing the Buchan design so Bill sent over to them a hull from which they built a mold. Mader, working with the MacCauslands, have continued to use basically the same Buchan hull shape to this day.
THE DEVELOPMENT

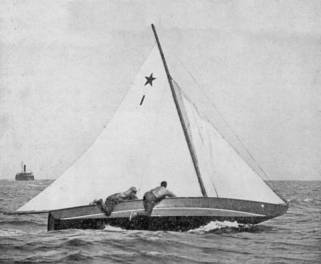

OF SPARS IN THE STARS When the Star rig was designed in 1911 by Francis Sweisguth it was a gaff rig with a long overhanging boom. This was a fairly common rig for racing boats of the era. The rigging which held the mast in place were the jibstay, a single set of shrouds which attached at the jibstay intersection, and a set of backstays which also attached at this point. Because of the hoops on the luff of the mainsail there were no spreaders.

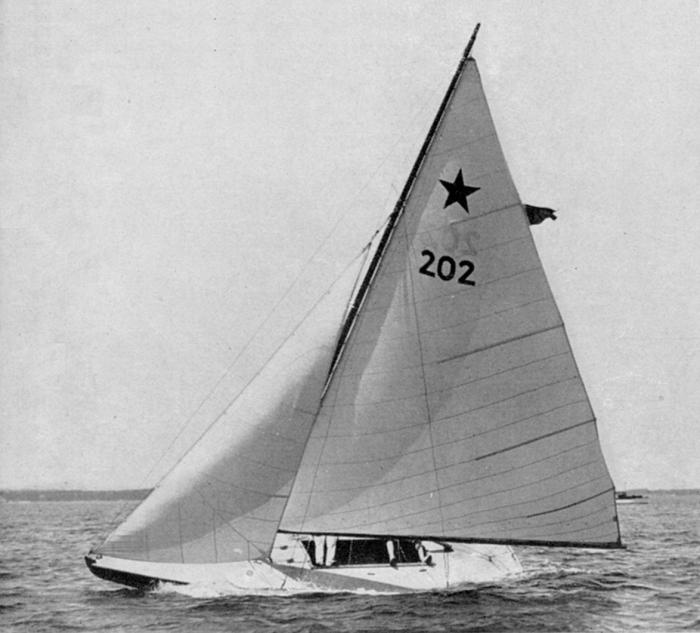

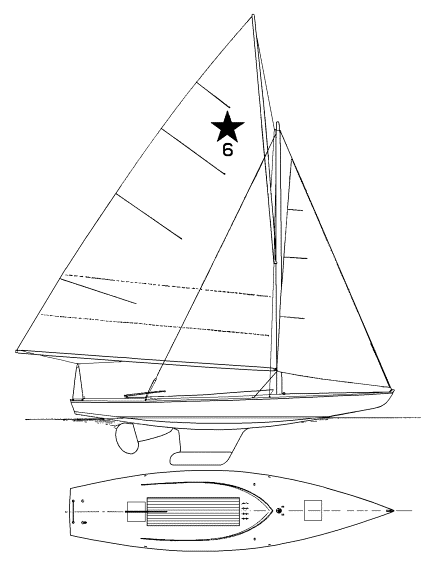

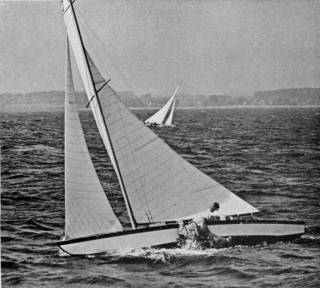

In the early 1920’s the Class made the switch from the gaff rig to the short Marconi rig. The use of spreaders became possible, although not mandatory, and several different rig configurations were tried out. Then, when the Class voted to go to the present rig dimensions in 1930 again the question of how many spreaders and their placement was left up to the discretion of the skipper. As a matter of fact, the experimental rigs tried out in 1929 under the direction of Francis Sweisguth used double spreader rigs, and during the 1930’s double spreader rigs were predominant in the Class. In the middle of the 1940’s the present rig configuration was experimented with and then generally adopted. Stan Ogilvy in his book "Successful Yacht Racing", (1951, page 60-61) gives the advantages and disadvantages of this rig, with his list of advantages far outweighing the list of disadvantages. Despite this there were always some people wanting to try out other rig configurations, and in the era of wooden rigs this was a relatively simple matter. For example, on the cover of the 1960 Log is a picture of Harry Nye in one of his Gales showing the double spreader rig. But it would seem that by and large the list of advantages enumerated by Ogilvy continued to operate even into the aluminum spar era which began in 1971 and little thought has been given to going to another design. Specification 10.3.2. clearly states that the size, design and number of spreaders is optional. Tuning THE STAR RIG From all available descriptions of the early Stars there was little which could be done to fine-tune the rig. The mast was placed in a hole in the deck and the butt in a simple mast step. The chainplate consisted of a strap of metal protruding from the rail slightly aft of the mast. There was only one hole in this strap to which the shroud was tied. As designed, there were no adjustments which could be made to either the rake or the position of the mast. The mainsail was lashed onto the boom and the gaff, and hoops were sewn to the section of the luff of the mainsail which slid up and down on the mast. The possible adjustments were such things as jib and mainsheet tensions, backstay tension, halyard tensions, and outhaul tensions on the boom and the gaff. The outhaul adjustments were made only before setting sail, and even the halyard tensions, once set, were not adjusted once the boat was underway. Short Marconi Era Once the short Marconi rig was adopted sail tracks were put on the mast and boom and sail slides on the sails. There were two advantages to having sail tracks and slides: 1) sails could be more easily changed before setting sail, and 2) the outhaul and halyard tensions could be varied. For two years running, 1922 and 1923, Bill Inslee of the Western Long Island Sound fleet was the Champion of the Star Class. Bill wrote an article about boat preparation for the April-May, 1924, issue of Starlights. This article is very illuminating in letting us see what a top skipper considered to be necessary to tune up his Star. Bill deals with everything concerning the boat. He begins with a description of how to get the smoothest bottom. Then he deals with getting the proper balance in the helm when going to windward. He mentions the importance of the proper position of the keel, the placement of the mast, the rake of the mast, the position of the jib fairleads, and backstay tension as various components which went into getting a balanced boat. It might be mentioned that as designed the keel was a little too far forward and it became quite common to move the keel as part of the process of getting the boat tuned up. Added to the various items concerning tune and boat care touched on in the article there is mention of a way, by using an adjustable headstay, to control the draft of the sail depending on the strength of the wind by flexing the mast. It is obvious that by this time the top skippers did not just take the boat as it was originally designed and built, but worked on it to bring the boat into balance and make various aspects of the rig adjustable.

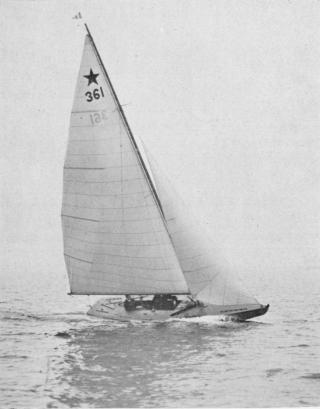

The backstay arraignment did not change until the mid-1920’s In the picture of the Ace taken in 1925 the backstays are still as originally designed, a 2-to-1 block-and-tackle system located on the rail at the aft end of the cockpit. Backstay tracks were made popular the following year when Ben Comstock and Bill Gidley won the World’s in Rhody. They had devised a backstay track system. In a fashion which has become a hallmark of the Class every top boat had to have these "Rhody runners". It took the Class another 60 years to move away from backstay tracks, and now on some of the recent boats we are back to the 2-to-1 block-and-tackle system, although now located further forward. The Early Tall Marconi
Rig Era Just as in the short Marconi rig era there were a variety of rigging configurations on the tall Marconi rig. However, for most in the 1930's the standard was to have a double spreader rig. To control the masthead two systems of stays were used. Some went to having a jumper strut at the jibstay intersection along with the upper set of spreaders. Others used a headstay. While there were no specified dimensions for mast sections, the earlier Logs during the wooden spar era recommended 3½" round at the deck. This was changed to the more realistic number of 3" in the 1946 Log. At first for some unexplained reason the knowledge shared by Bill Inslee six years earlier about the benefit of a flexible rig to control the draft of the mainsail by varying the tension on the headstay / jumper stay was ignored and the early tall rigs were carried ram-rod straight. The masts were also, by all accounts, massive in comparison to the masts which were to come later on. Walter von Hütschler
and Flexible Spars
In 1940 Parkman Yachts published a pamphlet written by Walter entitled "Little but Perfect" in which he describes the operation of flexible spars. His main thesis in the pamphlet is that once the rig is set up properly the flexing of the rig is automatic. The more the mainsheet is pulled the more the rig flexes and the flatter the mainsail. During the late thirties there was a variety of designs for adjustable mast steps and adjustable mast partners. Some skippers tried to induce bend using these mechanical devices in conjunction with the backstay. It was part of Walter's mission in writing the pamphlet to disabuse these skippers of the notion that forcing the mast to bend was of any benefit. Throughout the 1940's the double spreader rig began to be replaced by the single spreader rig which we still use today. Also during these years masthead halyard locks began to be employed. The tension on halyards which were cleated on the deck or below deck proved to be too much for the mast, especially when it started to flex. There were reports of masts exploding because of the pressure which built up on the mast due to the load of the halyard.
In order to compensate for the loss of an adjustable halyard, a moveable gooseneck fitting, consisting of the gooseneck having a slide and a track being mounted on the backside of the mast, came into use. The moveable gooseneck, in conjunction with an adjustable outhaul, made it possible to adjust the boltrope tension on the luff and foot of the mainsail while under sail. As the boat rounded the windward mark the crew would let off the outhaul and after setting the whisker pole would jump up on the deck and pull up the gooseneck until the luff boltrope was slack. Then the blocks in front of the mast were pulled and the mast was let forward. Finally the boom vang, if the boat had one, was hooked into a fitting on the rail. The reverse operation had to be performed before round the leeward mark. The 1950’s and 1960’s,
A Time of Innovation As masts got lighter and more flexible through the 1940's, 50's and 60's, the technique for building mast out of wood became more sophisticated. The masts of the thirties were often made out of a single piece of wood. (Try finding a single piece of Sitka spruce today which is long enough for a Star mast!) But it was found that there was a benefit in having masts built up of two or more pieces. Laminated masts tended to exhibit a more uniform bending characteristic. Various methods of lamination were tried. The simplest was to glue two 2 x 4's side-by-side creating a mast with the lamination fore-and-aft. This was then planed down to about 2½" wide by 3½" deep. The masts from Old Greenwich Boat Co. were more sophisticated and were built up of four pieces of 7/8" x 3" Sitka spruce which were laminated front to back with the boards running athwartship. Eichenlaub and other West Coast builders went to build a Sitka spruce box around a red cedar or redwood core. In general the Etchells masts tended to be 2½" wide and 3½" deep whereas the Eichenlaub and other West Coast masts (Eriksson for example) tended to be closer to having a square cross section, about 2¾" wide by 3" deep. Tuning Wooden Spars in the 1950’
and 1960’s Jumper Strut versus Headstay Aside from placing more pressure on the jibstay, another benefit of having a jumper strut was that if the correct thickness of wire was used there was enough stretch or spring in the wire so that once the correct tension was set up on the wire the masthead would automatically flex to the proper curve as the wind strength fluctuated. The wire most commonly used was a 3/32" halyard wire. Backstays Traveler The original traveler was a brass rod located on the transom. (See the original sail plan above.) As designed there was no control over how far the slide went on the rod, but some skippers placed stops on the rod to limit the distance the traveler slide would travel. During the 1930’s tracks began to replace these rods. Often, two tracks were placed on the afterdeck, in part to help control the position of the "claw", a cage affair which allowed for roller reefing. Some boats even had a third traveler which crossed the cockpit approximately where the barney post is located today. From what Walter von Hütschler writes in his pamphlet, apparently the traveler slides on these early travelers were controlled by stops which had to be manually set. By the 1950’s people came to the conclusion that roller reefing was not very effective. Thus the need for having two or three traveler tracks ceased to exist and it was found that a single traveler, located on the frame just behind the rudder post, was enough. It was also realized that being able to control the traveler slide was important so a rope or wire was attached to the slide. With this the slide could be kept in the center in light winds, and as the wind increased the traveler could be let off as needed to keep the boat balanced. Synthetic Sails With synthetic materials came the ability to have windows placed in the sails. At first these windows were small, the total allowed measuring three square feet. With window space at such a premium, only windows in the lower mainsail were used. Today a total of a little more than 8 square feet is allowed and windows are placed both in the main and the jib.
The Widgeon, # 6346, had many innovations, not the least of which was the elimination of backstay tracks in favor of an under-deck wire backstay system. Travelers were still in use with the traveler track just aft of the rudderpost, but Widgeon had the track recessed at the center line and then bowed up to about 2" above the deck at the rails. These items, combined with a computer-designed keel, extra stiffening provided by bulkheads, and buoyancy tanks on the floor to make the boat self-bailing made the boat radical for its time. Changes in the Jib Luff Wire
System Jib Fairlead Adjustment With the old high-cut jibs the fairlead was positioned about 10" aft of the mast and about 17" off center. Many boats had tracks running along the 10° line so that the fairlead could be adjusted fore and aft, but not laterally. However, Barber haulers came into use in the early 1960’s so there was no need for lateral adjustment. When the jib slot needed to be opened up this was accomplished by pulling on the Barber hauler. By the late 1960’s "deck sweeper" jibs took the place of the standard high-cut jib, but the angle at which the fairlead should be placed remained the same. In the articles about tuning written by Malin Burnham and Lowell North there was a difference of opinion as to what degree off center the fairlead should be placed. Malin called for 9° whereas Lowell mentioned 10° to 14° depending on the strength of the wind. As the picture below shows, Lowell had a single jibsheet fairlead track along the 10° line and Barber haulers to trim the jib off the 10° line.

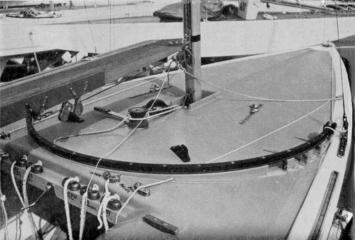

When the Star was designed the jib sheet was just a single line led from the jib clew through the jib fairlead and from there to a cleat. By the 1930’s it was felt that there was need to be able to pull on the jibsheet tighter in windier conditions. A winch was placed on the deck just forward of the cockpit and commonly a cleat was installed in center of the forward edge of the cockpit in order to cleat the jib. It wasn’t until the 1970’s that the two-part jibsheet system began to appear, eliminating the need for the winch. Cunningham Boom Vang

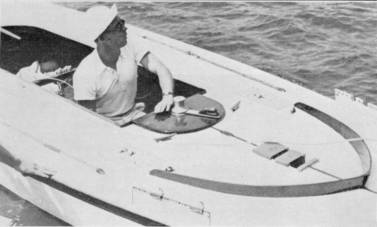

Finally, in the late 1960’s the circular vang track became more common, but competing against this was the boom vang lever which began to show up in the mid-1970’s. The lever was attached to a channel post which was directly behind the mast and bolted to it. The only real defect with the boom vang lever was that a depression aft of the mast had to be made so that the lever would have enough leverage. Mast Rake and Position Because the masts were not bent as much as they are now the location of the upper and lower shrouds on the chainplate was reversed. The uppers were attached to the chainplate at about the front of the mast and the lowers were positioned about 1" to 1½" in front of the mast. The mast was positioned so that the end of boom (or if it had the black band the band) came just to the transom or slightly inboard of it. General Principles In San Francisco particularly during the late 1950’s when the wind got to its customary 25 knots it was common to see a huge bubble in the main with just the jib and batten area of the main working. This was because both the jib and the main were strapped in really hard and the traveler was let off until the end of the boom was above or beyond the corner of the stern. Whether this was fast or not is questionable: the San Francisco fleet at the time was not very competitive with the rest of the West Coast boys.
As mentioned above, the original purpose of the lower backstay was to keep the mast from pumping in rough seas and became common on boats in San Francisco and the West Coast generally in the late 1950’s. Collective memory can’t exactly place when the use of lower backstay to power up boat came into play. However, photos from the late 1950’s of Lowell North’s North Star, #3877, show what looks like very substantial block-and-tackle on the lower backstay, so perhaps even by this time some few skippers were using the lower backstay for more than just stabilizing the rig. Despite this conjecture even by the mid-1960’s when Malin Burnham and Lowell North wrote articles for Starlights about tuning a Star neither of these articles mentions that the lower backstay was used to power up the rig. They agree that the purpose of the lower backstay was to keep the mast from pumping in rough conditions. Bill Buchan wrote an article for the November, 1980, issue of Starlights and again there is no mention of the lower backstay being used to power up the mainsail. Bill noted recently that "once you found the magic adjustment spot they weren't changed all that much." ALUMINUM SPAR ERA While Alan, who runs Spar Tech with Richard Gates, focuses on aluminum spars in the article, mention should be made that fiberglass and composite spars were also experimented with, but these experiments did not prove to be successful.

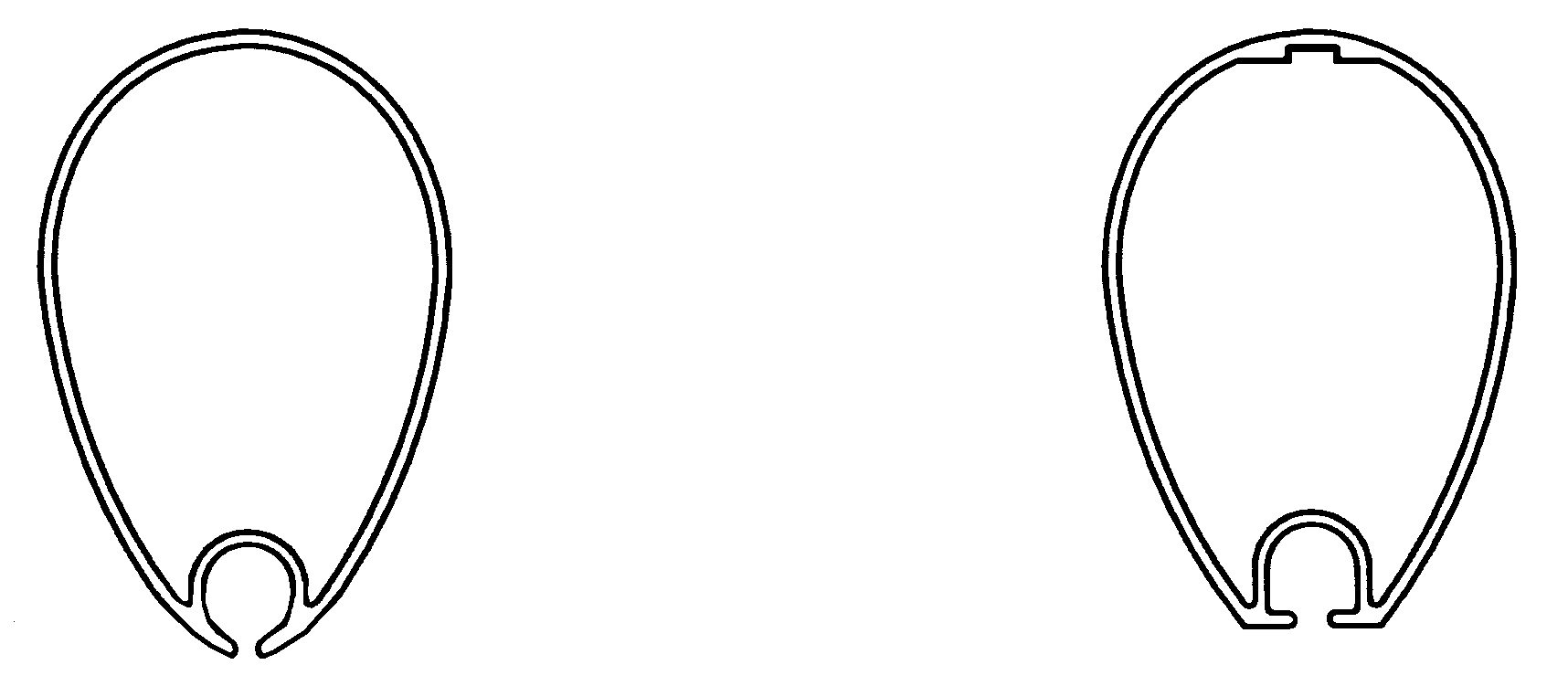

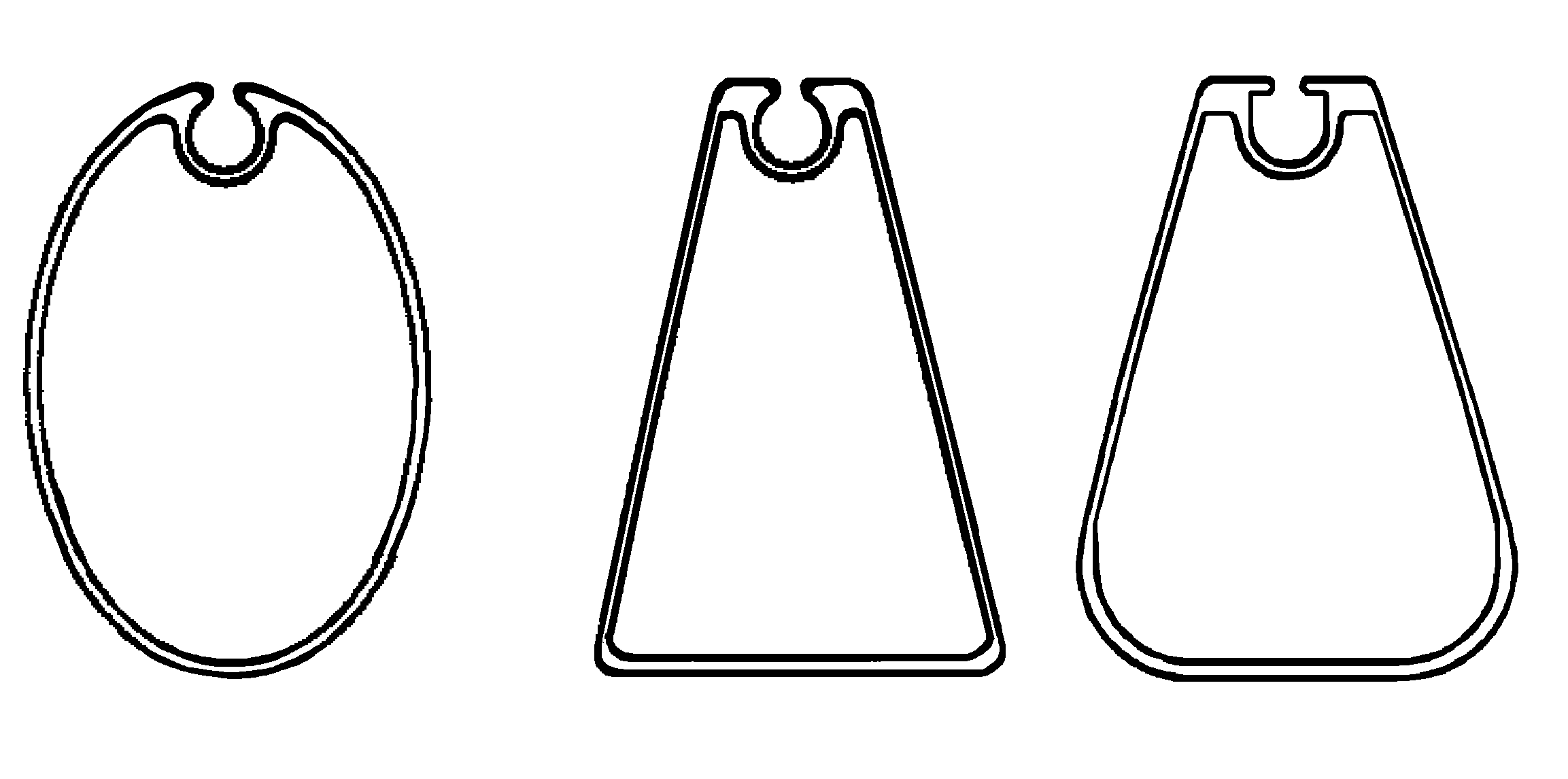

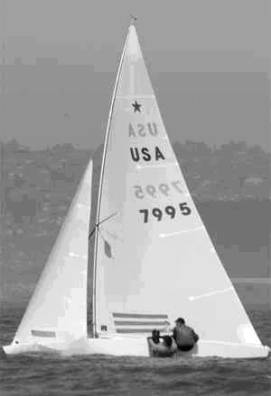

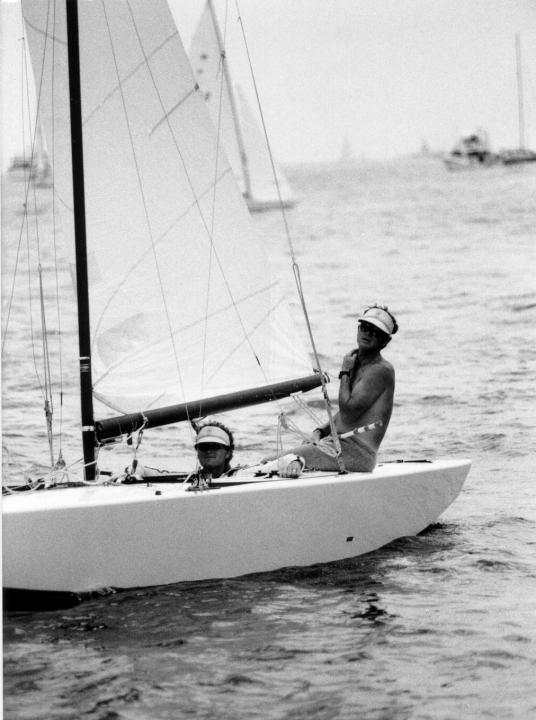

Booms have undergone more radical design changes. Oval sections were normally used with the black D section masts. The sharp-edged trapezoidal section came in 1987. This was replaced by the present rounded-edged trapezoidal section in 1989. From the information supplied in this article it can be seen that there are many options in terms of how a Star is set up, both in deck layout and in how the mast is rigged. If Stars look pretty much the same today it is because trial-and-error has narrowed down the options to fairly limited parameters and there is general agreement on how the boat is to be set up. This does not limit from the individual boat owner from trying out new ideas, or reusing old ones! References: HIKING TECHNIQUES
THROUGH THE AGES

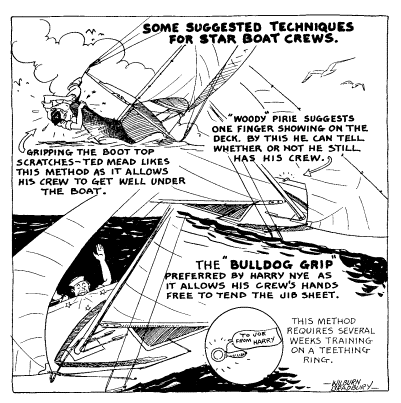

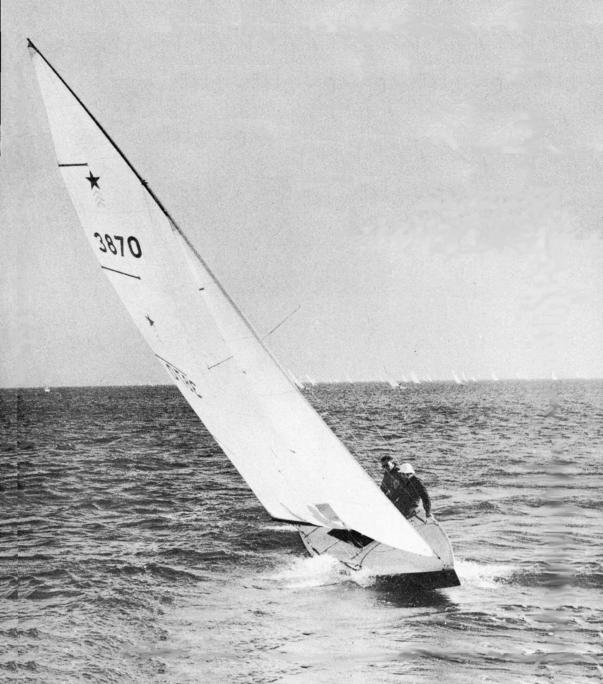

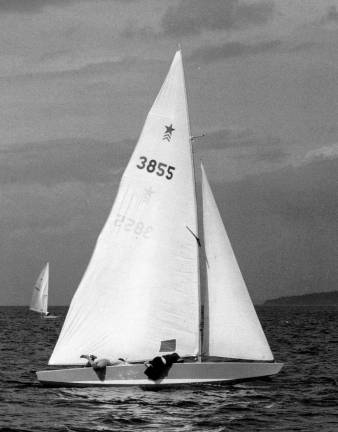

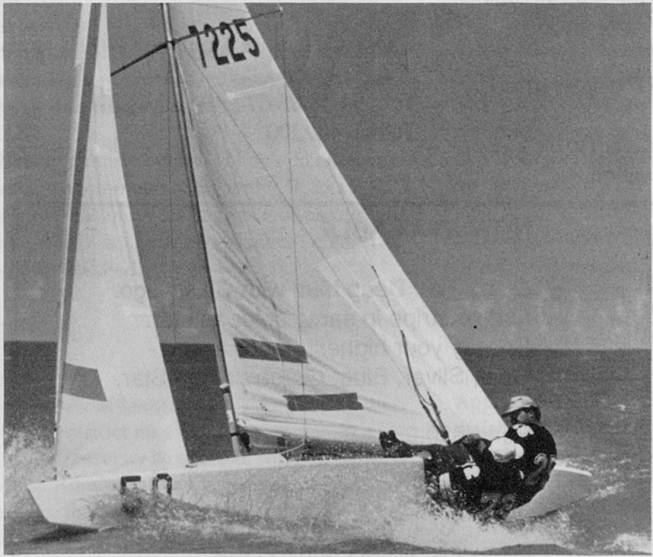

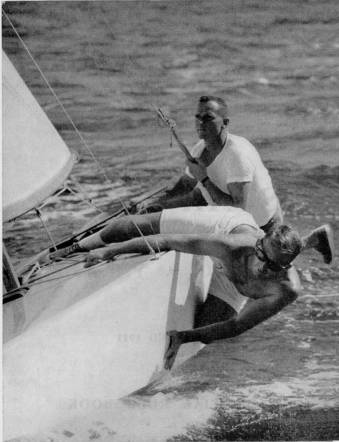

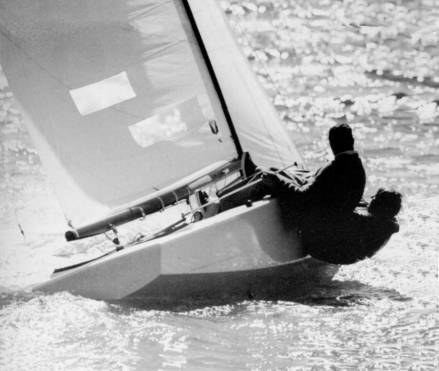

The hiking vest was allowed
in 1981. The combination of hiking straps and hiking vest have changed
completely the physical attributes of the premium Star crew. Paul Cayard
observed that at 205 lbs. he was a standard sized crew when he sailed
with Bill Gerard in the 1978 World’s.
BREAKTHROUGH

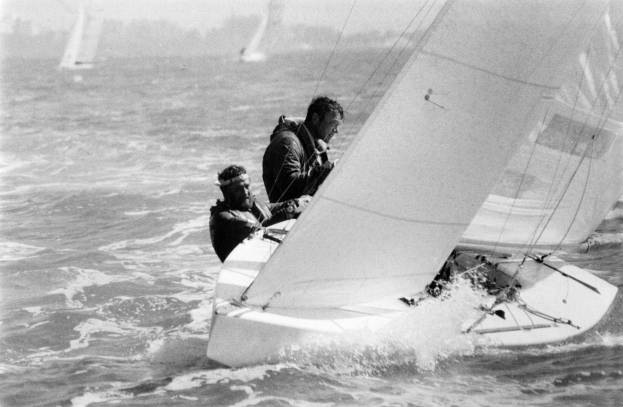

AT THE 1978 WORLD’S Flying home from Europe recently, I began thinking back over my career and my thoughts focused on my first Star World’s Championship. The year was 1978, the venue was San Francisco and the characters are now famous to all of us. For a change of pace I thought I would take a look back at this event. The protagonists are legends of our sport. I think you’ll enjoy the story. At 18 years of age, 6’ 2" and 205 pounds, I was the perfect 505 crew. However, Tom Blackaller had taken notice of me and asked me to crew for him in the 1978 Star North American Championship in Toronto as a lead up to the Star World’s in San Francisco later that year. I drove the boat from San Francisco to Toronto, cleaned it, rigged it, got it measured and waited for Tom to fly in the night before the first race. Such is the life of a keen young, aspiring, sailor. The championship was not to be as there was no wind to be found in Toronto that year. But I was exposed to the world of "Big Time" sailing. Durward Knowles, Buddy Melges, Bill Buchan, Joe Duplin, Dennis Conner, Lowell North, Ding Schoonmaker and of course Tom Blackaller were all present. So was a lesser-known boat builder named Bill Gerard. As Tom was to sail the Star World’s with his regular crew, Ed Bennett, Bill asked me to crew for him and as keen as I was, I said sure. Star sailing in those days was a "man’s" sport. No hiking vests, no self bailing cockpits and sliding track backstays that had to be tacked. What this meant was that the crew was hiked out over the side hanging on by his ankles, pulling on a rope that was attached to a bilge pump and retracted by shock cord, and tacking and releasing the backstays on tracks at each tack. It was a workout to say the least. But because you had to hang out over the side with no support, 205 pounds was not that far off the pace for weight. Of course there were exceptions; Ron Anderson, crewing for Dennis Conner at 275 could hike the whole way and Bill Munster at 285 crewing for Malin Burnham could most of the way. To say that Bill Gerard and I were underdogs was an understatement. The best Bill had ever done in the World’s was 15th and this was my first. But to our good fortune, two days before the World’s started, Buddy Melges came up to Bill and, handing him a bag of sails, said "Here, give these a try." We had no idea that we had in our hands was pure speed…an innovation the likes of which comes around once every 10 years in one-design sailing and produces speed that makes a significant difference. The sails in the bag were the first of the heavily yarn-tempered Dacron cloths and cut into the flattest set of Star sails ever seen. Buddy brought five suits to San Francisco; two for himself, and he gave one set to us, one to Ding Schoonmaker and one to our current ISAF president Paul Henderson. Little did anyone know that those five suits would win every race in that regatta. The standard in the class at the time was the North "DC2" main with a "TA4B" jib. "DC" stood for Dennis Conner, the reigning World’s champion having won every race at Kiel the year before. But the DC2 would be too full for the strong wind of San Francisco Bay once Buddy Melges came blowing off the starting line in truly a different gear. In the first three races of the regatta, the story was told. Buddy first, Dennis second and Tom third in each race. Buddy would come off the line and within five minutes it would look like he had started 30 seconds over early. With Andreas Josenhans at 255 holding the boat down and the supper flat supper hard "SF" main, Buddy was untouchable. There was nothing that stalwart Star Champions Blackaller, Buchan and Conner could do to equal Buddy’s speed. Through excellent sailing and experience in the class, Blackaller and Conner dragged their extra full sails around the course better than anyone else but Buddy was in a league of his own. There were 99 boats at the World’s that year, the biggest fleet ever to that date. At the first windward mark of the first race five boats sunk, all but one being retrieved off the shallow bottom of the Berkeley Circle. A relatively short 2 mile beat, a shiftless 20-25 knots of wind, and 99 boats was a recipe for carnage. Places 30-70 arrived at virtually the same time. A scene like that had never been seen before. In fact, the first leg of a Star World’s race is now 2.75 miles for this reason. After three races, Ding Schoonmaker gave up on his North sails and went for the Melges sails and proceeded to win the next two races. Buddy finished second or third in each and virtually sewed up the regatta without having to sail the last day. The last race is a historical one. We were having our best race in 2nd place fighting it out with the current ISAF President, Paul Henderson for the win. Henderson was the better sailor on the day and won the race, the only race he has ever won in the Star World’s. I am sure it is one of his fondest memories. In the final tally, Melges won the World’s (the first of two in a row) and his legend continued to grow in yet another class. The win also launched Melges as the boat builder and sailmaker of choice in the Star class at that time. He must have sold 400 suits of sails and 20 boats in the year following his win. Dennis Conner finished second, Tom Blackaller third, Gerard/Cayard fourth and Ding Schoonmaker fifth. A lot of water has passed under the bridge since that regatta. THE DEVELOPMENT
OF STAR CLASS COURSES COURSES In the 1924 Log the description of
championship courses was elaborated upon: The courses shall be either triangular or windward and leeward (varied if possible) and sailed twice around, making a total distance of ten nautical miles or more. No fixed marks indicating shoals, rocks, or near shore, such as government buoys, light-houses, etc. shall be used as marks of the course. In the event that the turning marks (stake boats) are not clearly visible from all parts of the course, a marker boat (large boat with a distinguishing flag displayed) shall be used in order to make the marks easy to locate. The general locality of the courses must be submitted to the I.E.C. for approval, and circulars containing complete instructions as to signals, tides, and course must be furnished to each contestant, including a chart of the course. In the 1927 Log the description of championship courses was further refined although the basic idea of having either a triangular course twice around or a windward-leeward course twice round remained the basic principal. However, a time limit of 3½ hours was added. This description continued to be used with some minor additions and clarifications up until the 1960 Log. Starboard and Port Roundings There was a World's, most likely in the mid to late 1950's, perhaps Italy in 1956, where the boats that rounded the weather mark couldn't fall off to go downwind in the face of all the starboard tack boats approaching the mark. I know that when I sailed the Portugal World's in 1962 the Race Committee wanted to have us round the marks to starboard because they felt it was unsafe for the fleet to round on port and then head offshore on the reaching legs into the open ocean. The uproar from the fleet at the skippers’ meeting led me to believe that sometime in the recent past there must been an experience that left an indelible impression on those skippers that were there as they wanted no part of any racing that called for starboard roundings. The RC dropped the idea then and there and that's the last time I ever heard of it being brought up.

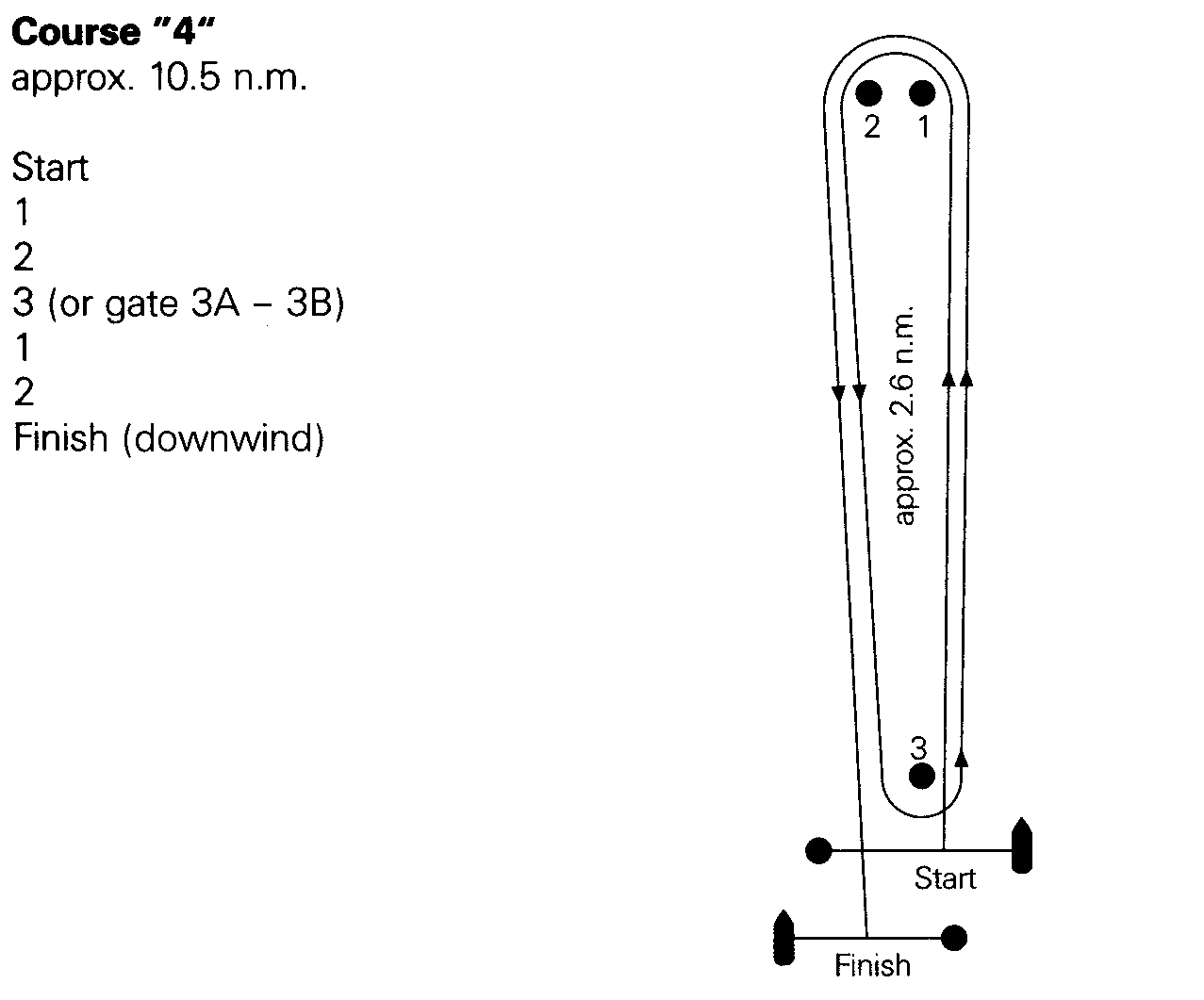

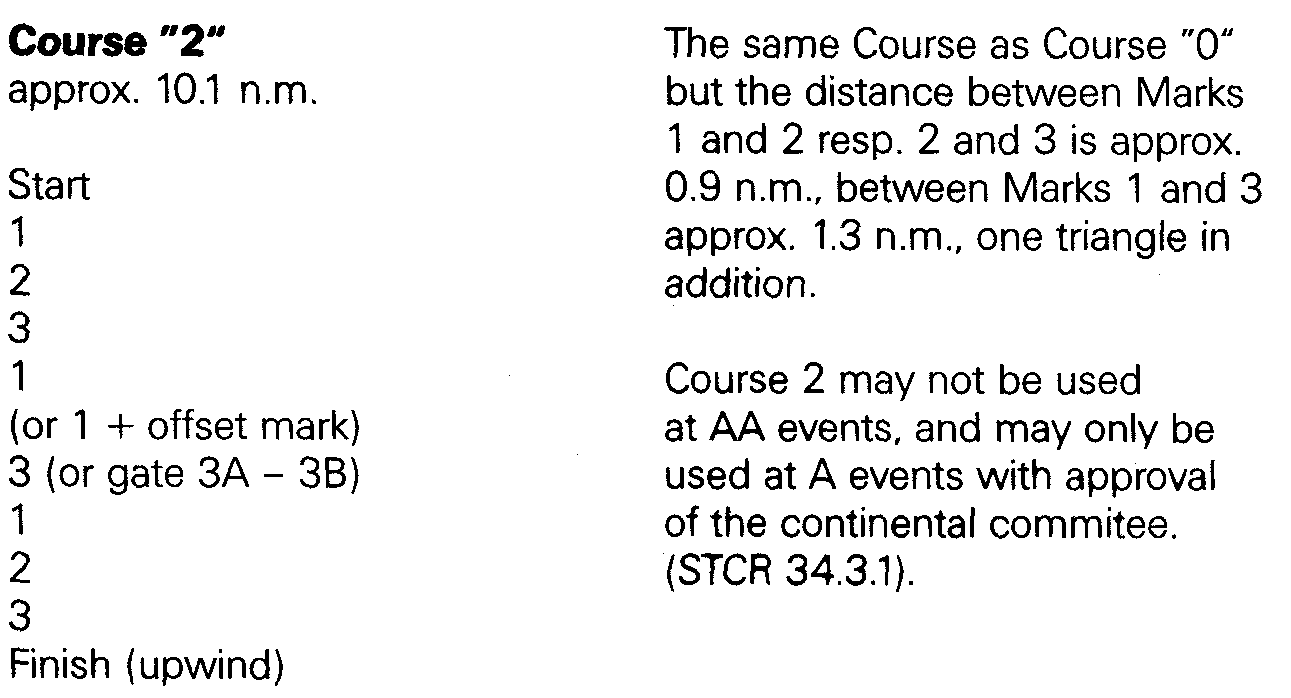

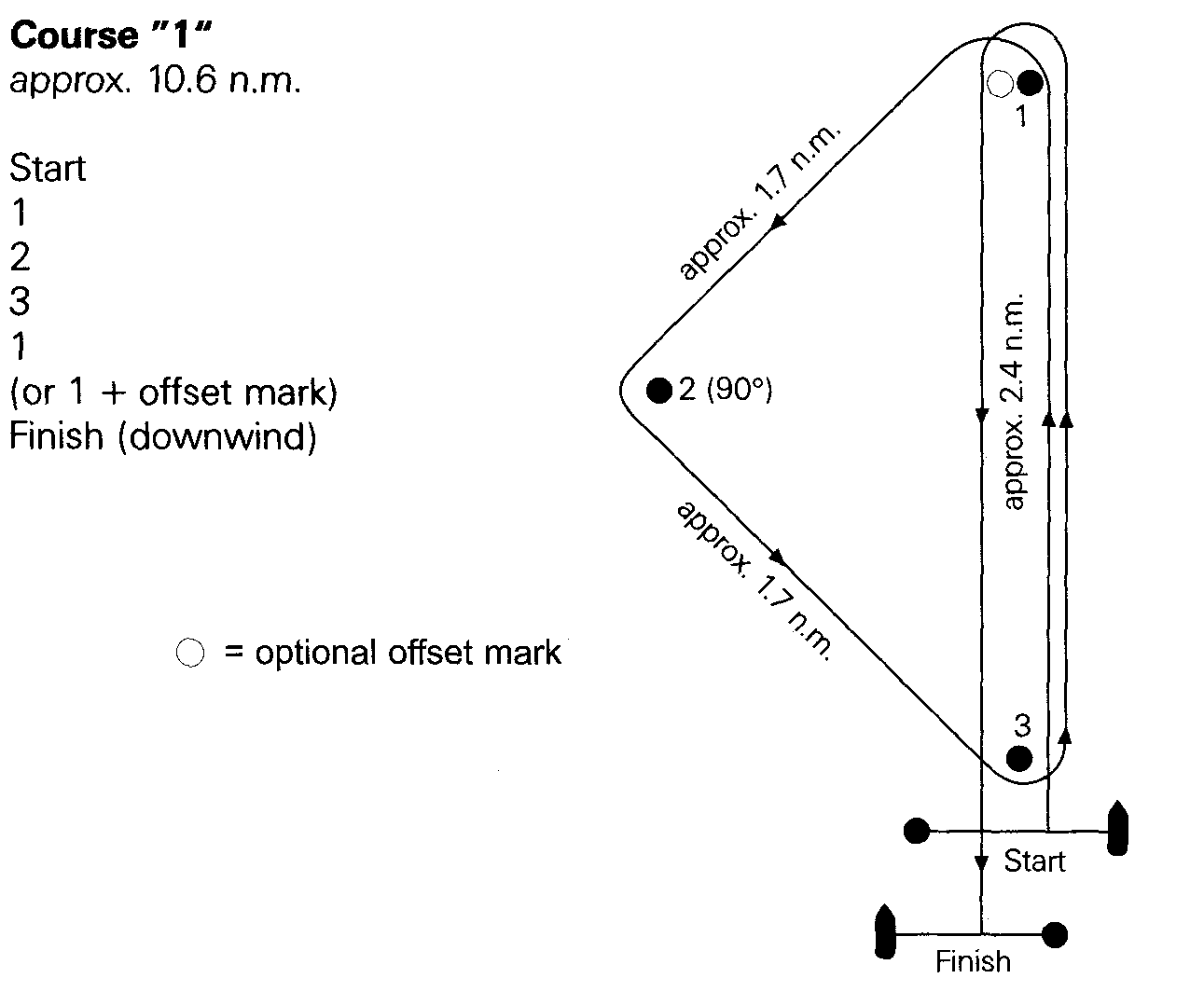

In the 1960 Log there was the first major change in course description since the Logs first came out. Only one course, called at the time "the Gold Cup Course", now Course 1, was to be used at the World’s Championship. The course description read as follows: 2. Races shall be held in open water as free as possible from headlands, shoals, obstructions and aids to navigation. Aids to navigation, unless otherwise specified, must be left on the required or channel side. 3. The course shall be an isosceles triangle, followed by a windward and return which is accomplished by omitting the right angle mark from the triangle on the second round, totaling approximately ten nautical miles. The course can not be shortened. The Addition of Other
Courses

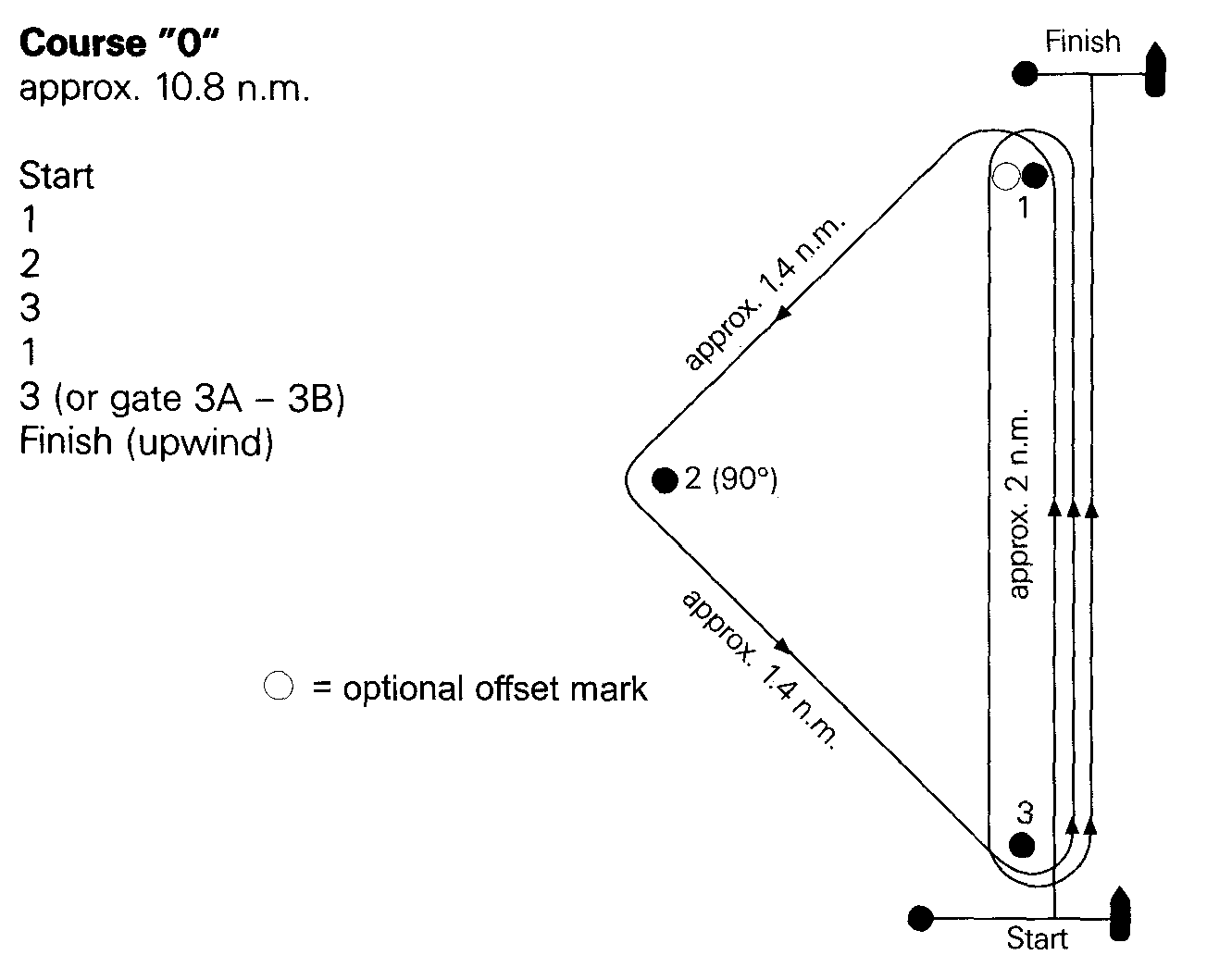

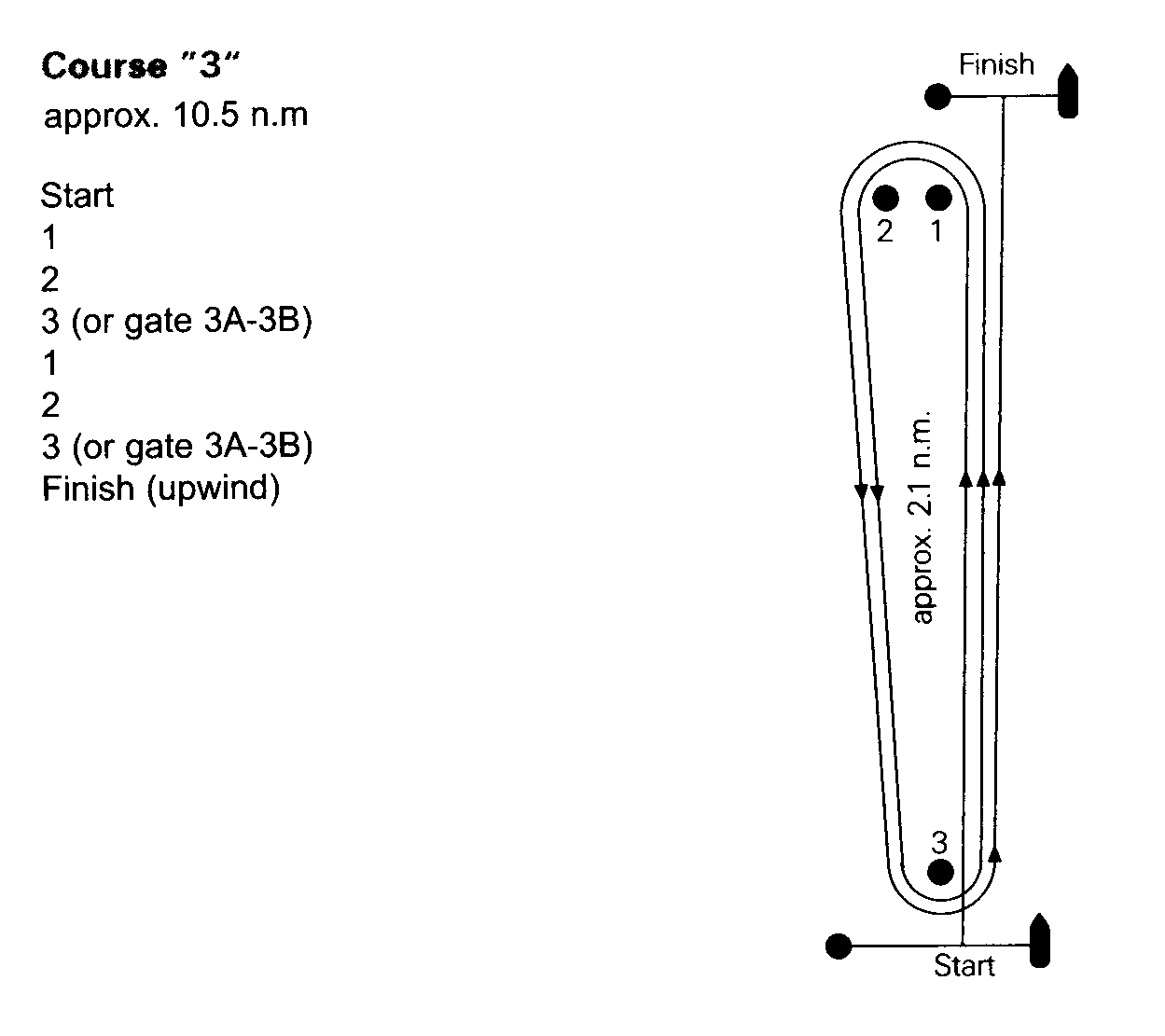

Course 0, known as the "Olympic Course" was added to the list of possible courses in the 1969 Log.
Course 3 was added in 1975 but it was not until 1994 that Course 4 was added.
It should be noted that theoretically for all of these courses the marks can be rounded either to starboard or to port since the direction of rounding is not specified in the course descriptions given in the Logs. However, in the 1996 Log illustrations of the five Star Class courses appeared for the first time, and in these port roundings are shown. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
During the winter of 1910-1911
twenty-two Stars were under construction at the boatworks of Isaac E.
Smith, located in Port Washington, New York and another 11 Stars, known
at the time as "Nahant Bugs", were being built by Richard T.
Green & Co. of Chelsea, Massachusetts. These 33 boats were the first
Stars to be built. Now, more than 90 years and 8,000 Stars later, Star
boats continue to be built.
On many of the boats up to the late 1950's there was only a single backstay
which was attached to the jib halyard cheek plate ears at the jibstay
intersection. On these boats the amount of bend in the mast was controlled
by the tension on the headstay or jumper strut wire and the amount of
blocking fore and aft of the mast at the partners. As masts got lighter
and lighter it was found necessary to have both lower backstays and in
the cases of really light masts masthead backstays in order to keep the
mast from breaking while going downwind. It was quite some time before
the lower backstay began to be used to power up the rig as well.
